Visual displays heavily influence how customers perceive your brand in retail and exhibition spaces. However, an incredible design easily falls flat if printed on the wrong substrate. Selecting the incorrect expanded PVC foam thickness routinely leads to catastrophic project failures. Undersized panels inevitably warp and bow under their own weight. Conversely, oversized panels severely inflate shipping budgets and frequently trigger dangerous mounting failures on site.
You need precise material specifications to avoid these costly pitfalls. Material dimensions must align perfectly with your structural requirements. This guide provides a definitive, specification-level breakdown of available thickness options. We designed this resource to help buyers seamlessly match material dimensions to exact project requirements before procurement. Whether you oversee retail signage, massive exhibition booths, or gallery-grade printmaking, you will learn how to specify the perfect board thickness every single time.

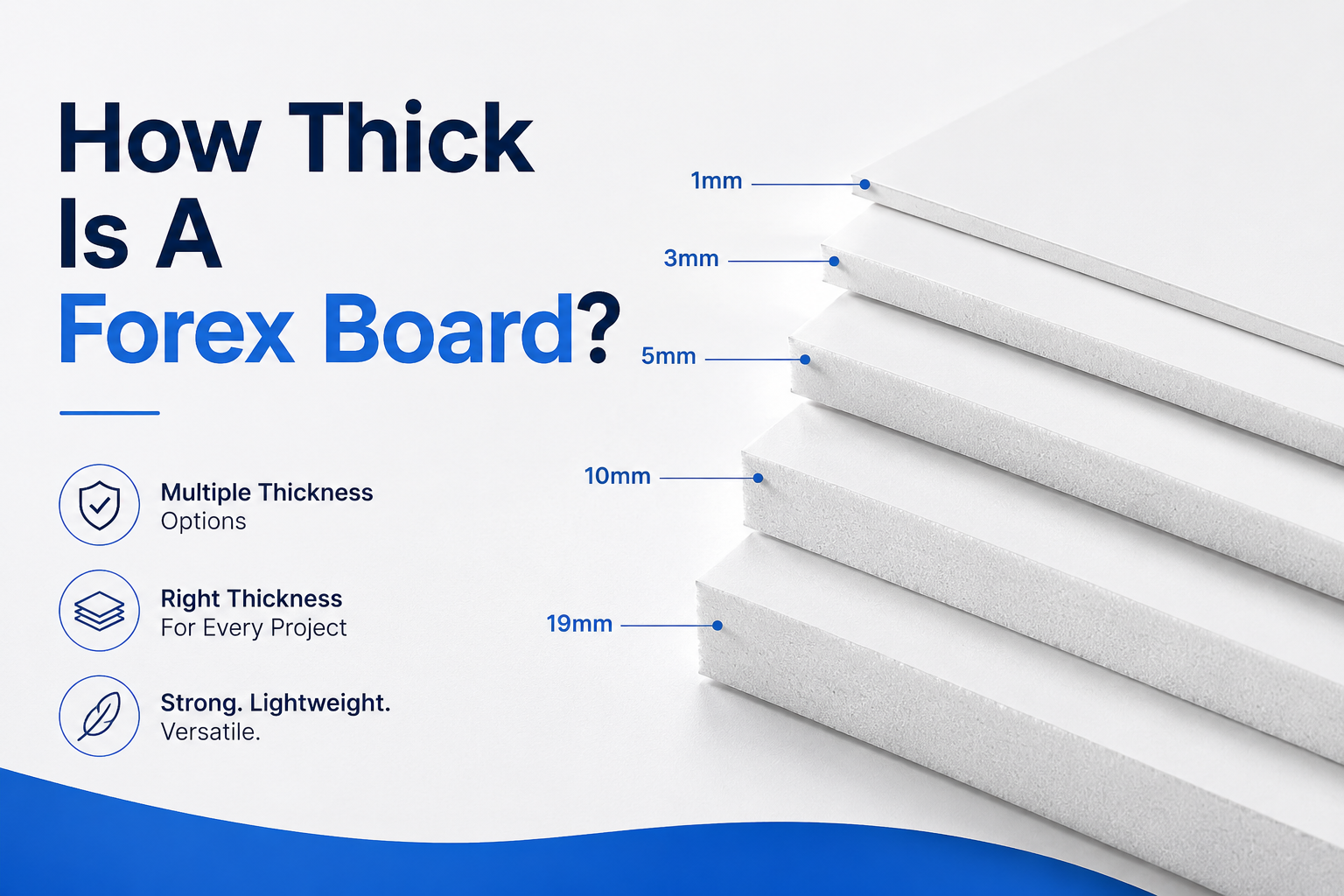

Forex boards are commercially available in thicknesses ranging from 1mm up to 19mm, with 3mm, 5mm, and 10mm serving as industry standards.
Material thickness directly dictates the rigidity-to-weight ratio; a 3mm board is ideal for indoor mounted prints, while 10mm+ is required for freestanding or outdoor structural applications.
Procurement decisions must factor in installation methods: thicker boards (10mm+) require mechanical fasteners, whereas thinner boards (2mm-5mm) can utilize high-tack adhesives.
Authentic FOREX® Classic offers specific density profiles (e.g., ~500-700g/m² depending on thickness) that generic PVC foam boards may not match, impacting overall weight calculations.
The manufacturing spectrum for expanded PVC foam is incredibly diverse. Manufacturers produce these boards to accommodate a massive variety of structural and visual demands. You will typically find the complete commercial range spanning 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 13mm, 15mm, and 19mm. While this broad selection offers immense flexibility, the market heavily favors a few specific dimensions. Most print shops and exhibition builders rely almost exclusively on the "Big Three" baselines.
Industry professionals universally recognize 3mm, 5mm, and 10mm as the core pillars of the forex board market. Understanding these baselines simplifies the procurement process significantly.
3mm: This serves as the absolute default for indoor point-of-sale (POS) displays. It provides the perfect substrate for standard photo mounting. The 3mm variant is lightweight, highly affordable, and exceptionally easy to handle during fast-paced retail rollouts.
5mm: Consider this the versatile middle-ground. It offers substantially more rigidity for medium-sized hanging signs. You gain structural stability without introducing excessive weight. Exhibition builders frequently use 5mm panels for modular booth walls.
10mm: This is the heavy-duty standard. It reigns supreme for premium exhibition panels, CNC-routed lettering, and load-bearing displays. When you need a sign to stand on its own or endure minor impacts, 10mm is the non-negotiable starting point.
You must carefully evaluate dimensional tolerances when sourcing materials. Genuine FOREX® Classic maintains extremely strict manufacturing tolerances. Depending on the chosen thickness, variance typically stays within a tight window of +/- 0.1mm to 0.5mm. This precision proves critical during installation. If you plan to join multiple panels together to form a seamless massive graphic, uneven generic boards will ruin the visual continuity. Generic PVC foam boards often suffer from fluctuating densities across a single batch. These inconsistencies can disrupt flatbed printing and severely complicate panel alignment on site.
Thickness directly governs a board's structural behavior in different environments. You cannot blindly apply a 3mm panel to every situation and expect success. Indoor environments forgive minor structural weaknesses, but outdoor deployments mercilessly expose them.
Indoor applications generally face zero wind load and stable temperatures. This allows you to utilize thinner substrates safely.
The ultra-thin 1mm to 2mm range excels in highly specific scenarios. These incredibly flexible boards are perfect for curved display counters. You can easily wrap them around pillars or use them as temporary promotional overlays. However, they lack the rigidity for standalone hanging.
For long-term indoor wall art, museum photography, and retail signage, the 3mm to 5mm range is the golden standard. A 3mm board sits flush against a gallery wall beautifully. If you need to suspend a directional sign above a retail aisle, upgrading to a 5mm Forex Sheet prevents the edges from curling over time.
Outdoor signage introduces severe physical stressors. Sun exposure, temperature fluctuations, and wind velocity change the structural math entirely.
Thin boards fail outdoors primarily due to thermal expansion. If you mount a 3mm or 5mm dark-colored board on an exterior wall facing direct sunlight, it will absorb intense heat. The material expands, and without a rigid aluminum framing system to constrain it, the board will warp dramatically. This warping ruins the graphic and eventually snaps adhesive mounts.
You face a strict 10mm+ requirement for outdoor deployments. Freestanding outdoor signs, heavy-duty A-boards, and construction exterior hoardings demand massive rigidity. A 10mm or 15mm board resists wind shear effectively. Its internal density mitigates localized warping from UV exposure. When building outdoor structures, always err on the side of maximum thickness.
Thickness | Primary Environment | Ideal Applications | Flexibility Profile |
|---|---|---|---|
1mm - 2mm | Indoor / Temporary | Curved pillars, laminating, overlays | Highly flexible, bends cold easily |
3mm | Indoor / Long-Term | Wall-mounted POS, photo backing | Moderate rigidity, requires wall support |
5mm | Indoor / Trade Show | Suspended signs, booth panels | Rigid, minimal flex under its own weight |
10mm+ | Outdoor / Structural | A-boards, routed 3D letters, hoarding | Completely rigid, structural grade |
Every millimeter of added thickness introduces new mechanical variables. You gain immense rigidity as you scale up, but you simultaneously inherit significant weight penalties. This trade-off dictates your entire installation strategy.
Thickness impacts overall mass exponentially depending on the core density. We must look at specific gravity to understand this. Authentic boards typically maintain a density of roughly 0.5 to 0.7 g/cm³.
Because density stays relatively uniform, weight scales linearly with thickness. A square meter of a 3mm board weighs approximately 1.5 kilograms. A square meter of a 5mm board weighs roughly 2.5 kilograms. You might look at a single panel and think the difference is negligible. However, if you are outfitting a massive 50-panel exhibition booth, upgrading from 3mm to 5mm adds 50 kilograms to your freight. You must calculate these loads strictly to avoid collapsing temporary exhibition walls.
Your hardware choices must evolve alongside your thickness selection. Using the wrong mounting technique guarantees a dropped panel.
Adhesive Limits: Double-sided tapes, high-tack commercial adhesives, and Velcro command strips offer brilliant convenience. However, you must stop relying on them once you surpass 5mm panels. The sheer downward force of a 10mm board will slowly defeat adhesive bonds over a few months, especially in humid environments. Adhesives work perfectly for 3mm standard sizes mounted to drywall.
Mechanical Fastening: Heavy boards demand mechanical intervention. Why do 10mm+ boards require standoffs, anchor screws, or French cleats? It comes down to shear failure. The internal cellular structure of thick PVC foam can hold a screw thread surprisingly well. For maximum safety on 10mm boards, use washers to distribute the load and prevent the screw head from biting through the plastic facade.
Print buyers often ignore the "sag factor." Gravity is relentless on large format plastics. Imagine you print a beautiful banner on a 3mm board measuring 2 meters across. If you suspend this board from the ceiling using only two corner wires, the center will bow aggressively downward under its own weight. The graphic will look distorted and unprofessional.
A 3mm board spanning 2 meters simply cannot support itself horizontally. You must upgrade to a 5mm or 10mm board for ceiling suspensions. The thicker core resists gravitational pull, keeping the bottom edge perfectly parallel to the floor. If you must use 3mm for a large suspended graphic, you will need to bolt rigid aluminum channels along the top and bottom edges.
Procuring the raw material represents only the first phase. Your chosen thickness dictates exactly how your production team can cut, route, and print the substrate. Buyers often order thick boards without verifying if their local print shop possesses the machinery to process them.
Expanded PVC foam cuts cleanly, but blade resistance increases aggressively with thickness. You must match your fabrication tools to the board.
1mm–3mm Range: These panels offer effortless fabrication. Installers can score and snap them cleanly using a heavy-duty utility knife and a straight edge. Standard guillotine cutters sheer through 3mm boards perfectly, leaving a smooth, factory-grade edge.
5mm Range: This thickness bridges the gap between hand tools and power tools. You can cut 5mm by hand, but it requires multiple heavy passes with a fresh blade. For commercial volumes, shops rely on specialized vertical panel saws to maintain perfectly square cuts.
10mm–19mm Range: Heavy boards mandate automated machinery. You cannot cut a 15mm board safely with a utility knife. It requires CNC routing tables or heavy-duty circular saws equipped with plastics-specific blades. Highlight this as a major production bottleneck. If you lack heavy machinery, you must order these boards pre-cut to their final dimensions.
Thickness directly influences the flatbed UV printing process. Press operators must physically adjust the print head height to accommodate the substrate. If a board suffers from poor thickness tolerances, the print heads might strike the plastic, ruining the equipment.
Thick boards hold heat differently during the UV curing process. Edge-curing thick panels sometimes requires modified lamp settings to prevent edge warping on the press. From a visual standpoint, thicker boards provide a significantly more premium "canvas" depth. A photograph printed on a 10mm board and hung with floating standoffs creates striking drop shadows. The thickness itself becomes a defining aesthetic feature for gallery prints. Ink adhesion profiles remain identical across all thicknesses because the closed-cell matte surface finish does not change.
Eliminate guesswork from your procurement workflow. By following a rigid shortlisting logic, you ensure structural integrity while optimizing your shipping budget. Use this step-by-step framework before you finalize any material purchase.
Step 1: Define the Lifespan & Environment. Start by isolating the location. Is the project indoor and temporary? Default to thin boards (1mm-3mm). Is the project outdoor, load-bearing, or permanent? Immediately filter your options to thick boards (10mm+). Environmental context is the ultimate filter.
Step 2: Determine the Mounting Method. How will this graphic attach to the world? If you plan to glue it directly to a flat, supportive wall, 3mm is highly efficient. If it hangs from the ceiling, upgrade to 5mm to combat gravity. If it stands freely in an aisle, demand 10mm and mechanical fasteners.
Step 3: Verify the Supply Chain. Never assume generic board specifications. Ask your suppliers for the official Technical Data Sheet (TDS). You must confirm fire ratings (such as DIN EN 13501-1) if the boards will live inside public venues or airports. Additionally, verify the exact weight-per-square-meter to generate accurate freight estimates.
Take one final actionable step to protect your investment. Request a sample pack containing 3mm, 5mm, and 10mm cut-offs from your supplier. Test the rigidity with your own hands. Run a small test print to verify the finish before committing thousands of dollars to a bulk pallet order. If you need assistance sourcing these specific materials, feel free to contact us directly for expert guidance.
Selecting the right expanded PVC foam thickness dictates the ultimate success or failure of your visual project. The "right" thickness is never a random guess; it is a calculated balance between your required rigidity, precise installation constraints, and your overall freight budget. Understanding the physical trade-offs of each millimeter empowers you to make smarter procurement decisions.
As a baseline recommendation, always default to 3mm for standard indoor visual merchandising and flat wall mounting. Upgrade proactively to 5mm whenever you deal with suspended graphics or larger unsupported indoor signs. Finally, strictly reserve the 10mm to 19mm range for premium structural deployments, dimensional lettering, or demanding outdoor environments where wind load threatens the installation.
Your signage deserves the perfect structural foundation. Review your upcoming project specifications today, order sample materials to verify structural tolerances, and secure the exact thickness your display demands.
A: Yes, if you fully mount it to a flat wall. The wall provides the necessary structural backing. However, if you hang it from the ceiling or place it on an easel, sizes over A1 will likely bow under their own weight. Always upgrade to 5mm for unsupported large posters.
A: Yes, 1mm and 2mm thicknesses are highly flexible and you can easily cold-bend them for exhibition columns. The 3mm variant offers slight flex for gentle curves. However, 5mm boards and above are entirely rigid. They require specialized heat thermoforming to bend without snapping.
A: No. The fine, closed-cell matte surface texture is completely identical across all thicknesses. Thickness only affects the structural depth, rigidity, and physical durability of the final piece. The ink absorption and color reproduction remain exactly the same.
A: Weight scales linearly with thickness based on the material's density (approximately 0.5 to 0.7 g/cm³). Therefore, a 5mm board will be roughly 66% heavier than a 3mm board of the exact same dimensions. You must carefully factor this increase into your shipping logistics and mounting hardware limits.
