Views: 0 Author: Site Editor Publish Time: 2026-01-16 Origin: Site
Did you know that choosing the wrong density or thickness of PVC foam board can lead to costly failures in signage, furniture, or construction projects? Whether your board warps outdoors or fails under load, the wrong choice can hurt your results—and your reputation.
In today's competitive market, PVC foam board is increasingly used in industries ranging from advertising and interior decoration to construction and furniture manufacturing. But with so many thicknesses and densities available, how do you choose the right one?
In this guide, you'll learn how to choose the right density and thickness of PVC foam board based on your application, environment, and budget. Backed by expert insights and product data from top manufacturers like JUTU, this article will help you make confident, cost-effective decisions.
PVC foam board is a lightweight, durable, and versatile material used in signage, construction, and furniture.
Density affects strength, durability, and weight, while thickness impacts rigidity and performance.
Choosing the right combination ensures optimal performance, cost-efficiency, and long-term durability.
Applications like outdoor signage, kitchen cabinets, and wall cladding each require specific density-thickness combinations.
Consulting a reliable manufacturer like JUTU ensures quality and customization.
PVC foam board is a lightweight, rigid sheet material made from polyvinyl chloride (PVC). It is known for being:
Waterproof and mildew-proof
Flame retardant
Corrosion-resistant
Easy to process: cut, drill, glue, print, or laminate
Thermally insulating
Available in various colors and finishes
There are two main types:
Free Foam Board: Lighter and less dense, suitable for printing and indoor use.
Celuka Foam Board: Denser skin layer, higher strength, suitable for structural or outdoor use.
According to JUTU, their PVC foam board comes in thicknesses from 1mm to 30mm, with density options from 0.4 to 0.9 g/cm³, and customizable colors like white, black, blue, or red.
Density is measured in grams per cubic centimeter (g/cm³) or kg/m³ and refers to how compact the PVC material is.
Low density (0.4–0.5 g/cm³): Lighter, easier to cut, more flexible, lower cost.
Medium density (0.55–0.65 g/cm³): Balanced strength and weight.
High density (0.7–0.9 g/cm³): Stronger, more rigid, suitable for heavy-duty or structural applications.

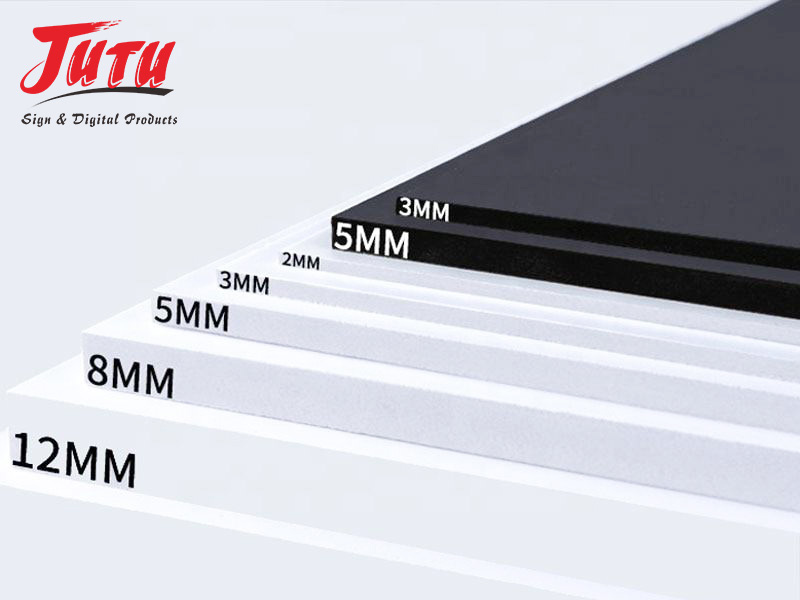

Thickness affects:
Rigidity: Thicker boards resist bending.
Load-bearing capacity: Thicker boards can support more weight.
Application: Indoor signage may only need 3mm, while cabinetry may require 18mm.
| Feature | Low Density (0.4–0.5 g/cm³) | Medium Density (0.55–0.65 g/cm³) | High Density (0.7–0.9 g/cm³) |
|---|---|---|---|
| Weight | Light | Medium | Heavy |
| Cost | Low | Medium | High |
| Strength | Low | Moderate | High |
| Flexibility | High | Moderate | Low |
| Best For | Temporary signs, models | Displays, indoor panels | Cabinets, outdoor signage |
Choosing the right PVC foam board depends on your specific use case. Here's a comprehensive guide:
| Application | Recommended Density | Recommended Thickness | Notes |
|---|---|---|---|
| Indoor Signage | 0.45–0.6 g/cm³ | 3–5mm | Lightweight and cost-effective |
| Outdoor Signage | 0.6–0.8 g/cm³ | 5–10mm | Weather-resistant and stiff |
| Kitchen Cabinets | 0.6–0.9 g/cm³ | 12–18mm | Requires high screw-holding |
| Wall Cladding | 0.55–0.7 g/cm³ | 8–12mm | Fire-retardant and durable |
| 3D Display Structures | 0.4–0.6 g/cm³ | 10–20mm | Easy to carve, lightweight |
| Model Making / Prototyping | 0.4–0.5 g/cm³ | 2–5mm | Easy to cut and shape |
| Construction Formwork | 0.7–0.9 g/cm³ | 20–30mm | High load-bearing |
| Printing / UV Printing | 0.45–0.6 g/cm³ | 3–6mm | Smooth surface for ink adhesion |
Different uses require different performance. For example, outdoor signs need UV resistance and rigidity, while indoor displays may prioritize weight and ease of installation.
Outdoor exposure requires high-density boards with UV and weather resistance.
High humidity areas (e.g., kitchens) benefit from waterproof and mildew-proof boards.
Some boards are easier to print, rout, engrave, glue, or laminate depending on their density.
Lower density = lower cost, but also less durability. Always balance function and cost.
Available in white, black, blue, green, red, yellow, or custom. Choose based on aesthetic needs.
Ensure the board meets CE, REACH, or other relevant standards like those offered by JUTU.
As a trusted global supplier, JUTU offers insights from years of PVC foam board production:
At JUTU, products undergo full inspection for every shipment, ensuring consistency in density and thickness.
Celuka PVC foam board has a denser outer layer, making it ideal for carving, cabinetry, and load-bearing applications.
JUTU offers tailored solutions:
Thickness: 1–30mm
Width: 1220–2050mm
Length: 2440–3050mm
Density: 0.4–0.9 g/cm³
Color: White, Black, Green, Blue, Red, Yellow or custom
Laminated surfaces improve scratch resistance and print quality, especially for outdoor advertising.
The right PVC foam board can save you money, extend the lifespan of your project, and ensure excellent performance in all conditions.
To recap:
Understand your application and environment
Match the right density and thickness
Don't compromise on quality or certification
Partner with a reliable manufacturer
Whether you're building kitchen cabinets, making signs, or designing exhibitions, the right PVC foam board makes all the difference.
Need professional guidance? Contact JUTU for custom solutions or a free quote.
For cabinet structures, use 12mm to 18mm thick boards with 0.6–0.9 g/cm³ density for high load-bearing.
Yes. Choose high-density boards (≥0.6 g/cm³) with UV protection and weather resistance.
Celuka has a solid outer skin and is stronger; free foam is lighter and more economical.
Yes. JUTU's boards are non-toxic, lead-free, and recyclable.
Use CNC machines, blades, or routers. Lower density boards are easier to shape.
